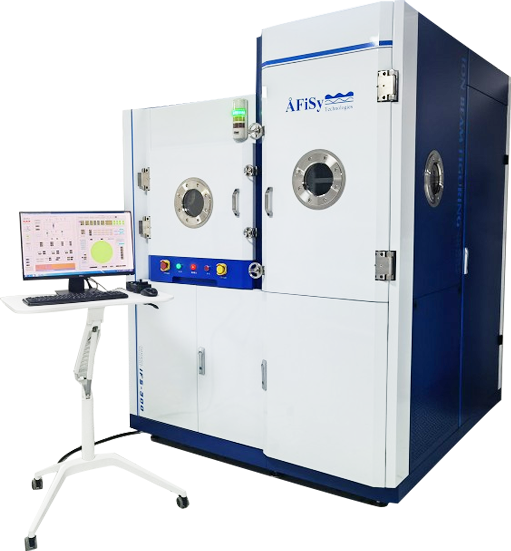

The ion beam polishing machine ÅFiSy IFS300A developed by Changsha AFiSy Technologies has 3-axis and 3-linkage function, which can process workpieces with a maximum size of Φ300mm, and has the ability to process flat, spherical, aspheric and free-form, parabolic, etc.
Key features include:
1. Precision: Achieves sub-nanometer surface roughness and angstrom-level surface figure accuracy.
2. Versatility: Suitable for a variety of materials, including glass, ceramics, and metals.
3. Control: Equipped with advanced software for precise control over the polishing process.
4. Reliability: Built for consistent and reliable operation in high-precision manufacturing environments.
This machine is ideal for applications in precision optics manufacturing, where high-quality surface finishing is critical. For more detailed information or inquiries, feel free to contact us.
Key attributes:
| name | parameter |
| Processing capacity (Maximum workpiece size) | 300mm×300mm 100mm thick |
| Machinable surface shape | Plane, spherical, aspheric, free surface, paraboloid, etc |
| Machinable materials | Quartz, microcrystalline, ULE, sapphire, monocrystalline silicon, silicon carbide, etc |
| Machinable precision | Sub-nanometer machining precision, surface shape RMS ＜ 1nm ultra-high precision machining |
| XShaft stroke | ≥300mm |
| YShaft stroke | ≥300mm |
| ZShaft stroke | ≥300mm |

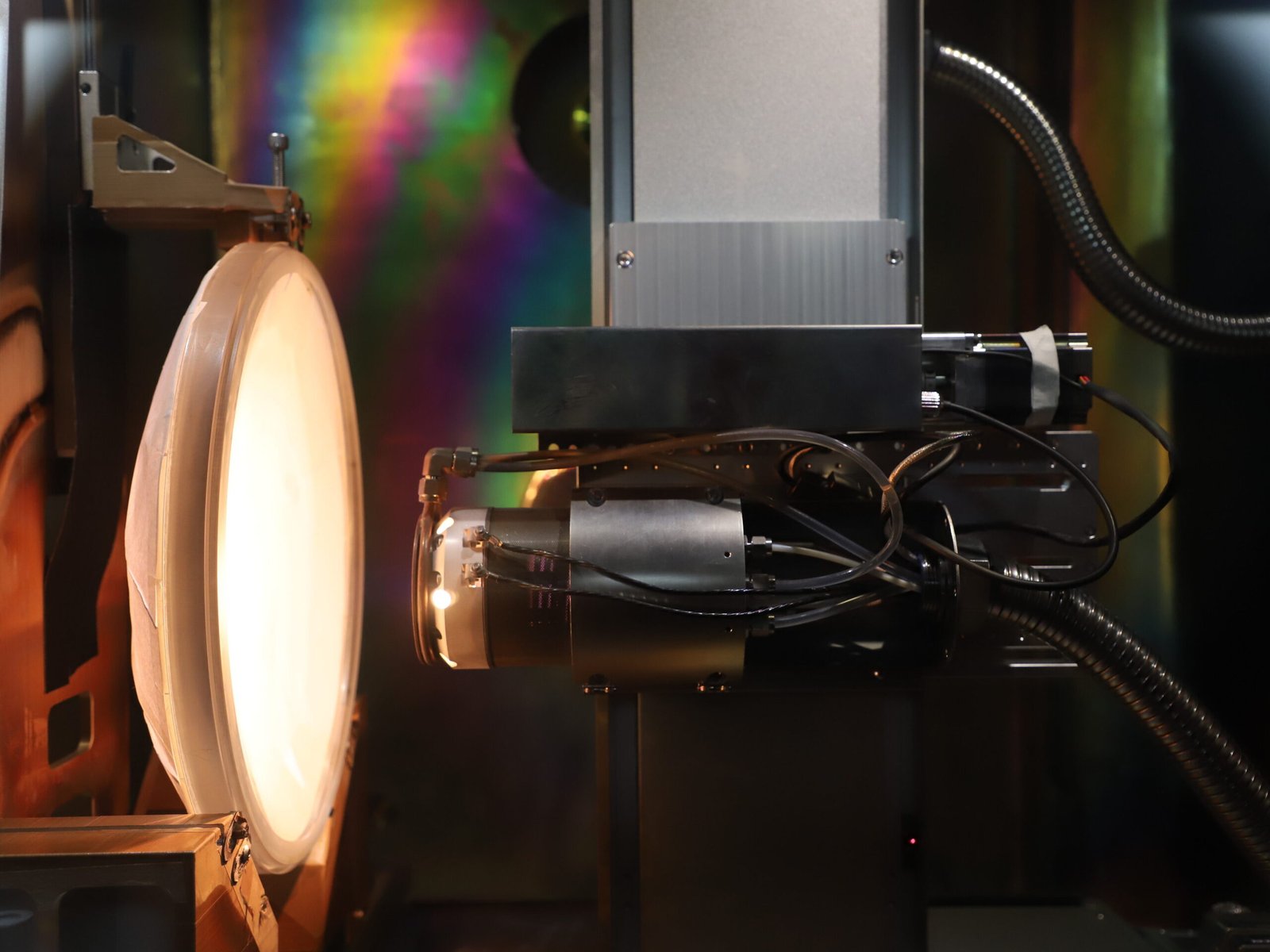

| ion source | American Veeco HC 5cm/German RF ion source |
| Neutralizer | Veeco HCN/Germany |
| Working vacuum establishment time | ≤1 hours |
| Auxiliary chamber vacuum establishment time | ≤15 min |
| Maximum movement speed of X-axis | 5m/min |
| Maximum movement speed of Y-axis | 5m/min |
| Maximum movement speed of Z axis | 3m/min |
| Repetitive positioning accuracy of moving axis | ≤±0.01mm |
| Protection function | It has fault alarm protection for accidental power failure, water failure, gas failure, motion system fault protection, ion source fault protection, etc |
| Intelligent function | It has the functions of intelligent one-button start, one-button stop, scheduled reservation processing, remote control, log and so on. |
| Overall dimension | Length, width and height: 2.5×2.5×2.1m |
| Operating Weight | 4 tons |
| Power consumption | Max:12KW Avg:5KW |
