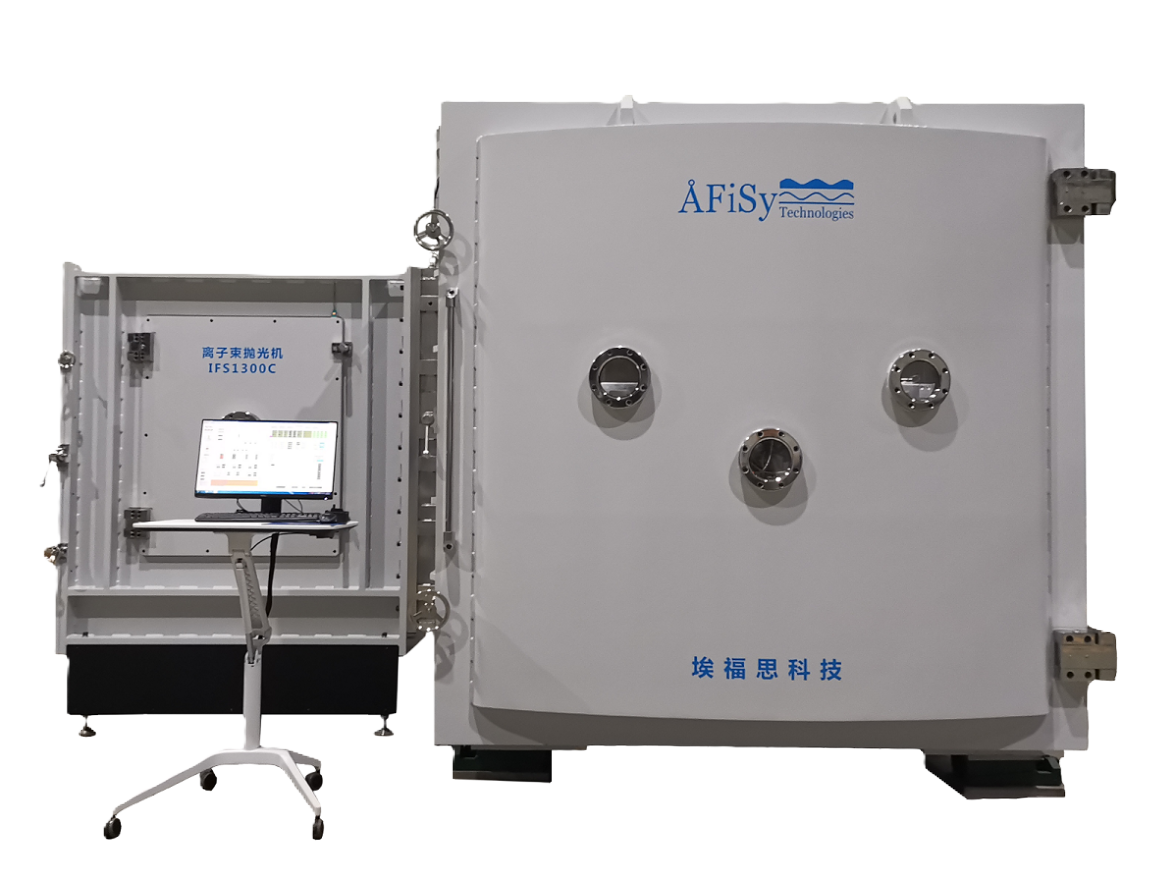

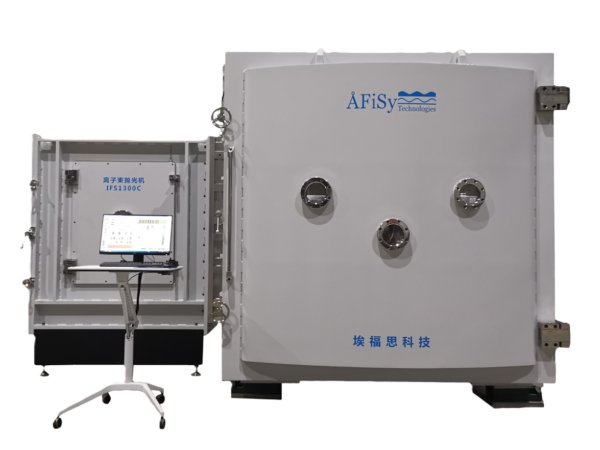

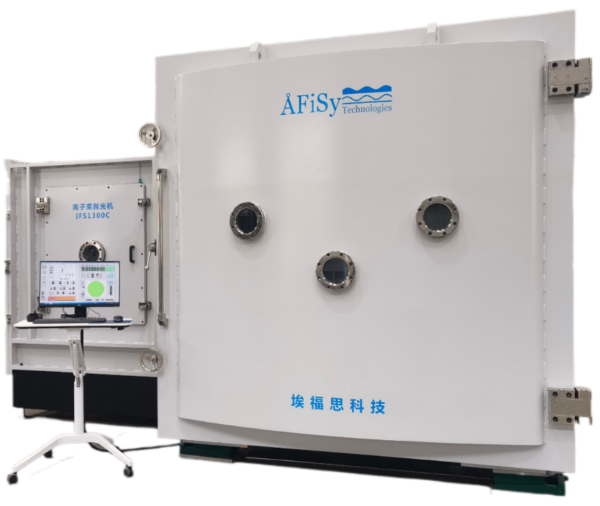

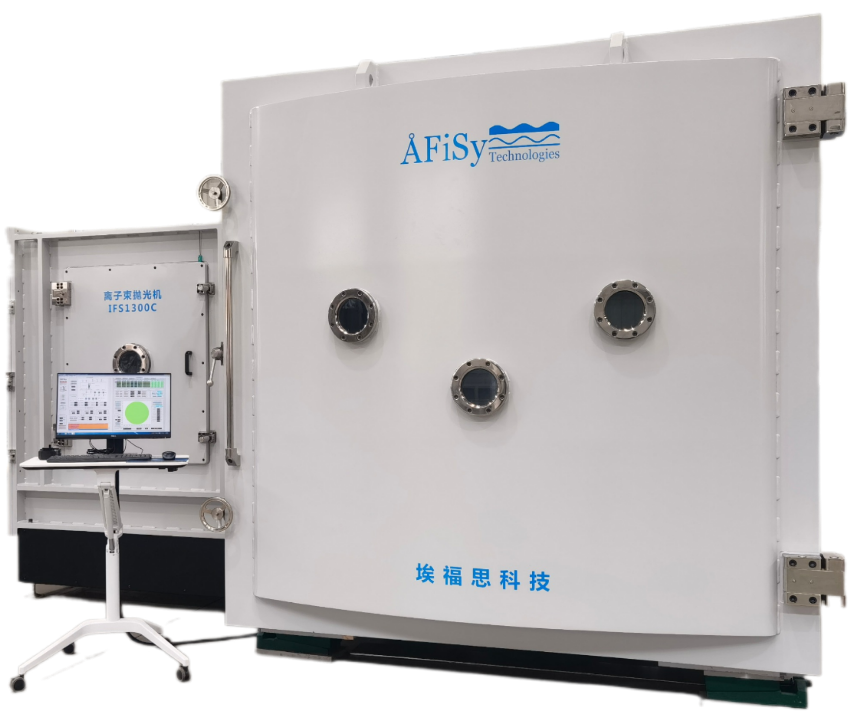

ÅFiSy Ion Beam Figuring Machine IFS1300C
The new-generation ion beam polisher ÅFiSy Ion Beam Figuring Machine e IFS1300C of Changsha AFiSy Technology Co., Ltd. can process workpieces with a maximum size of Φ1300mm. Moreover, it has the processing capabilities for optical parts such as planar, spherical, aspheric, off-axis, and freeform surfaces.

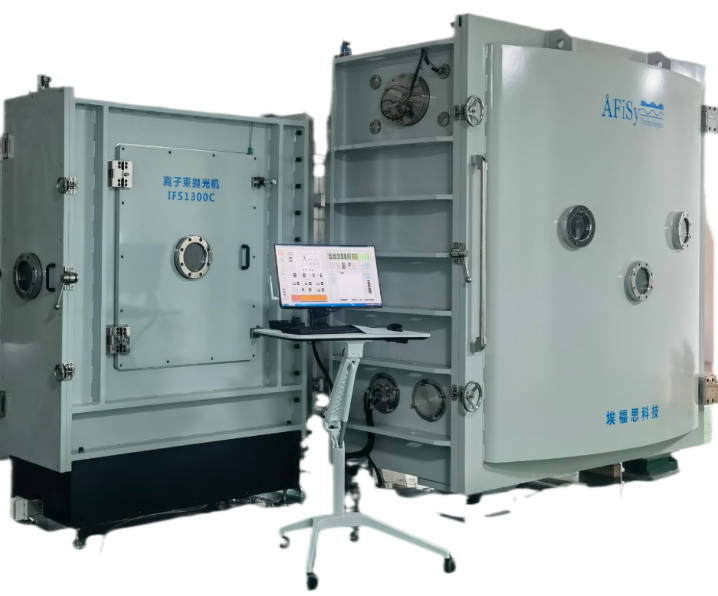

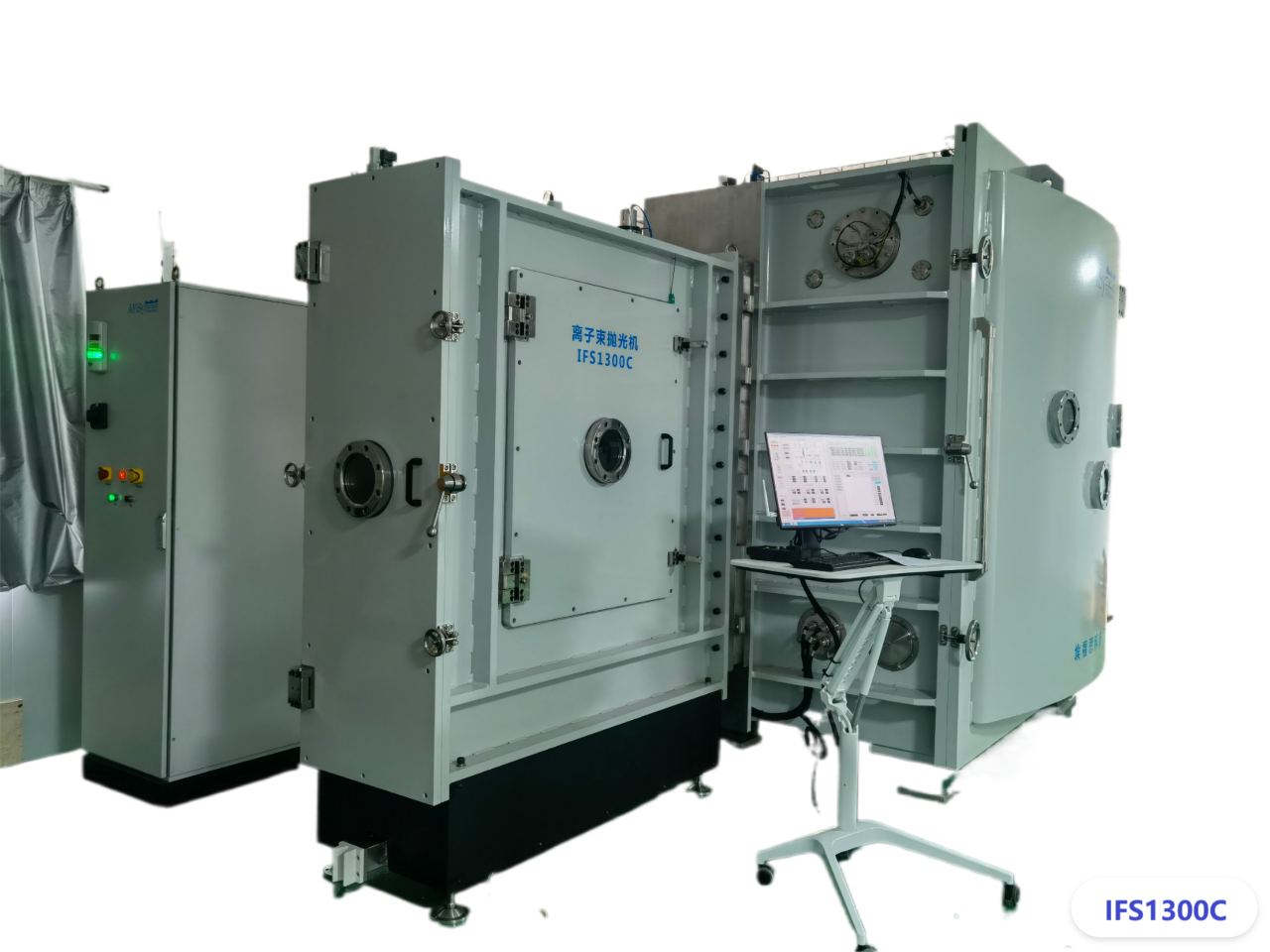

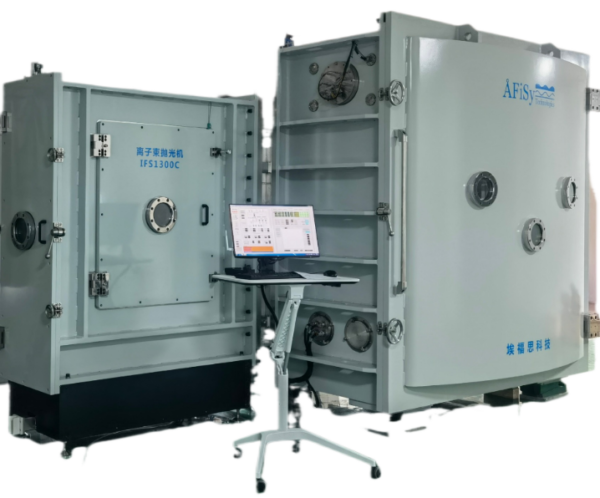

The ÅFiSy Ion Beam Figuring Machine IFS1300C adopts duo vacuum chambers with side-entry and a vertical workpiece clamping structure. The equipment mainly consists of a vacuum system, a motion system, an ion source system, a workpiece system, an electrical control and software system, etc.
Attributes
| name | parameter |
| Processing Capabilities (Maximum workpiece size) | Maximum size 1300mm×1300mm Maximum thickness 300mm, maximum weight 700kg |
| Machinable surface | Plane, spherical, aspherical, off-axis curved, free-form, etc. |
| Processable materials | Microcrystalline, K9, fused quartz, Si, CVD, SiC, nickel-phosphorus layer, etc. |
| Machinable accuracy | |
| X-axis travel | ≥1350mm |
| Y-axis travel | ≥1350mm |
| Z-axis travel | ≥300mm |
| Ion source | German radio frequency ion source |
| Neutralizer | Germany |
| Working vacuum establishment time | ≤2 hours |
| Sub-chamber vacuum establishment time | ≤15 minutes |
| Protection function | With limit protection, workpiece protection, Y-axis synchronization protection, emergency stop, electrical safety protection, vacuum system safety protection, ion beam polishing process safety protection, etc. |
| Smart Features | It has advanced functions such as intelligent one-key startup, one-key shutdown, scheduled startup, scheduled shutdown, scheduled processing, processing protection, remote assistance, log, etc. |
| Dimensions | 6.2m×4.0m×2.69m |
| Machine weight | 15 tons |
| Power consumption | Total power 23kW |
